As computing technology advances, we have shifted from using large, single-chip processors to systems made up of smaller, specialized chips called “chiplets.” These chiplets work together to boost processing power and efficiency.
This transition is crucial because we’ve reached the physical limits of how many transistors can fit on a single chip. As transistors shrink, problems such as overheating and power inefficiency become more severe.[1] Using multiple chiplets in one system can increase computing power without facing these physical constraints.
The challenge of communication between chiplets
Traditionally, communication within a chip has been managed by a system called Network-on-Chip (NoC), which acts like a data highway. This method becomes inefficient as systems get more complex, especially with multiple chiplets. Data has to travel farther across more grid points, slowing communication and increasing energy consumption.
When we scale this approach to various chiplets, we create what’s known as Network-in-Package (NiP). However, the same issues—delays, energy inefficiency, and limited scalability—still exist as wired connections dominate data transfer.
To solve these problems, researchers are exploring wireless communication at the chip level. Instead of relying on wires, chiplets could communicate wirelessly using tiny antennas.
Terahertz (THz) frequencies, electromagnetic waves between infrared and microwave, offer high-speed data transfer, making them ideal for this application. However, THz signals are highly noise-sensitive, disrupting communication and making it harder to decode transmitted data.
Floquet engineering: Improving signal detection
Our research addresses this issue with Floquet engineering, a technique from quantum physics that helps control electron behavior in a material when exposed to high-frequency signals.[2,3,4] This technique makes the system more responsive to certain frequencies, improving the detection and decoding of THz wireless signals, even in noisy conditions.
We applied this method to a two-dimensional semiconductor quantum well (2DSQW)—a very thin layer of semiconductor material that restricts electron movement to two dimensions. This setup enhances the system’s ability to detect THz signals, even when noise interference is high. Our research is published in the IEEE Journal on Selected Areas in Communications.
Dual-signaling architecture for more accurate communication

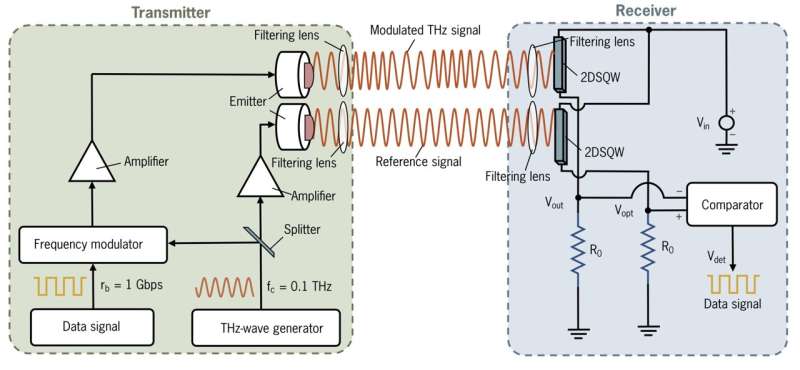

To further improve noise handling, we developed a dual-signaling architecture, where two receivers work together to monitor signals. This setup allows the system to adjust a key parameter, called reference voltage, based on the noise levels detected. This real-time adjustment significantly improves signal decoding accuracy.
Our simulations showed that this dual-signaling system reduces error rates compared to traditional single-receiver systems, ensuring reliable communication in noisy environments—a critical requirement for chip-scale wireless communication.
By overcoming the challenges of noise and signal degradation, our dual-signaling technique marks a key advancement in developing high-speed, noise-resistant wireless communication for chiplets. This innovation brings us closer to creating more efficient, scalable, and adaptable computing systems for the technologies of tomorrow.
